Why B1 Ebike ?
The B1 1000W e-bike is the ideal entry-level choice for both commuting and adventure, achieving speeds of 31 MPH and a long range of 60 miles
BLVALL B1 48V 2000W Dual Battery Snow Beach Electric Bicycle
Dimension & Weight
Fit for Body Height：5’7"-6'11"(170cm-210cm),Max Load:330LB(150KG)
B1 360 View
Bluvall B1 1000W Ebike boast 31mph speed,60miles long range,rear & front hydraulic disc brakes ,Shimano 7 speed gear etc.
B1 1000W Key Features

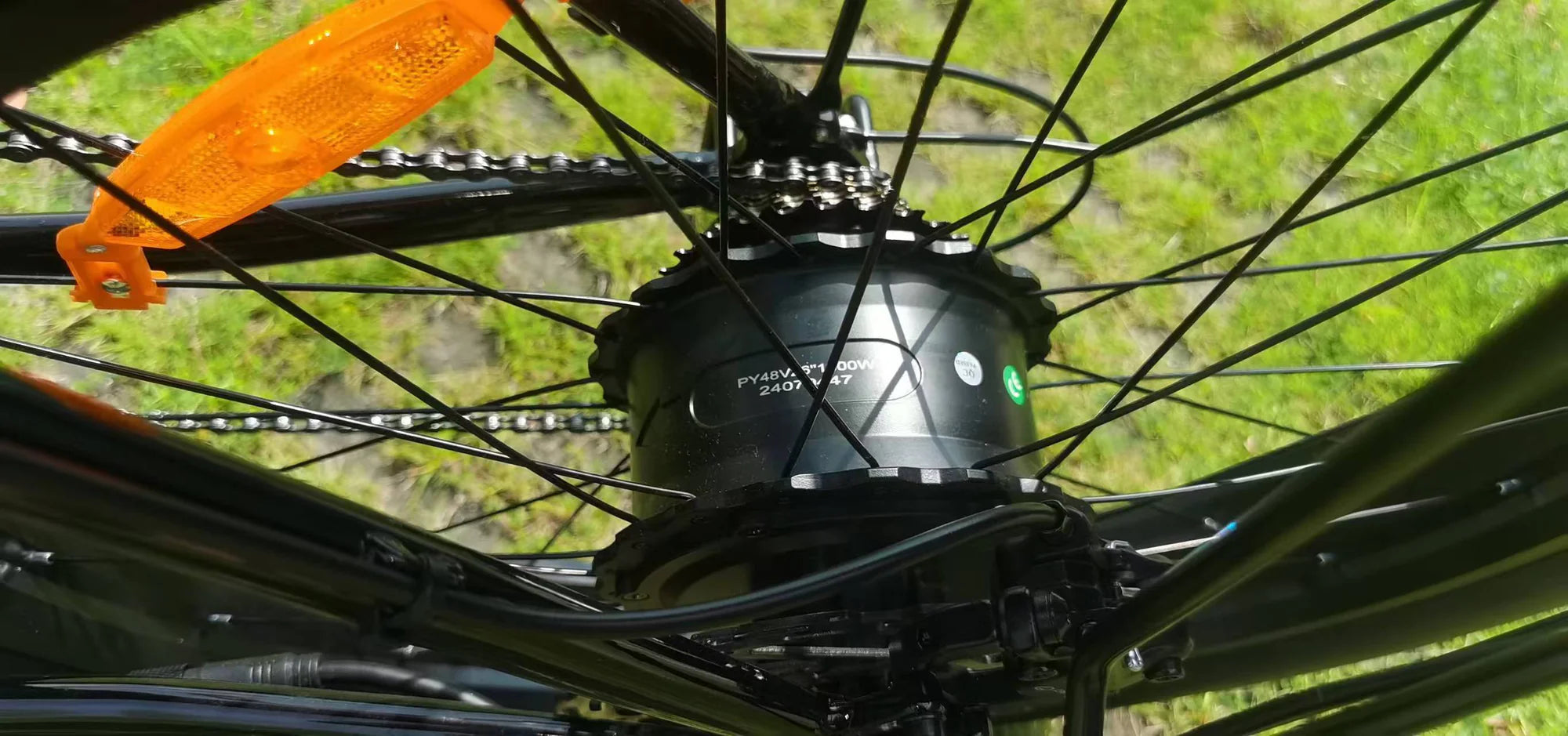

Robust 2000W Motor
The Bluvall Zeegr F1 boasts a robust 2000W high-speed brushless motor, 80NM Torque,propelling you to speeds of up to 35MPH, ideal for tackling tough terrains and steep inclines with ease.
48V22.4AH Battery
UL2849 Certified 48V 22.4Ah rechargeable Lithium-Ion battery.Enjoy an impressive riding range of 40-60 miles on a single charge. This removable battery design allows for convenient off-bike charging, enhancing security.
Aluminum Suspension Fork
Front suspension on this e-bikes absorbs shocks and vibrations, enhancing rider comfort and stability by smoothing out bumps and rough terrain.

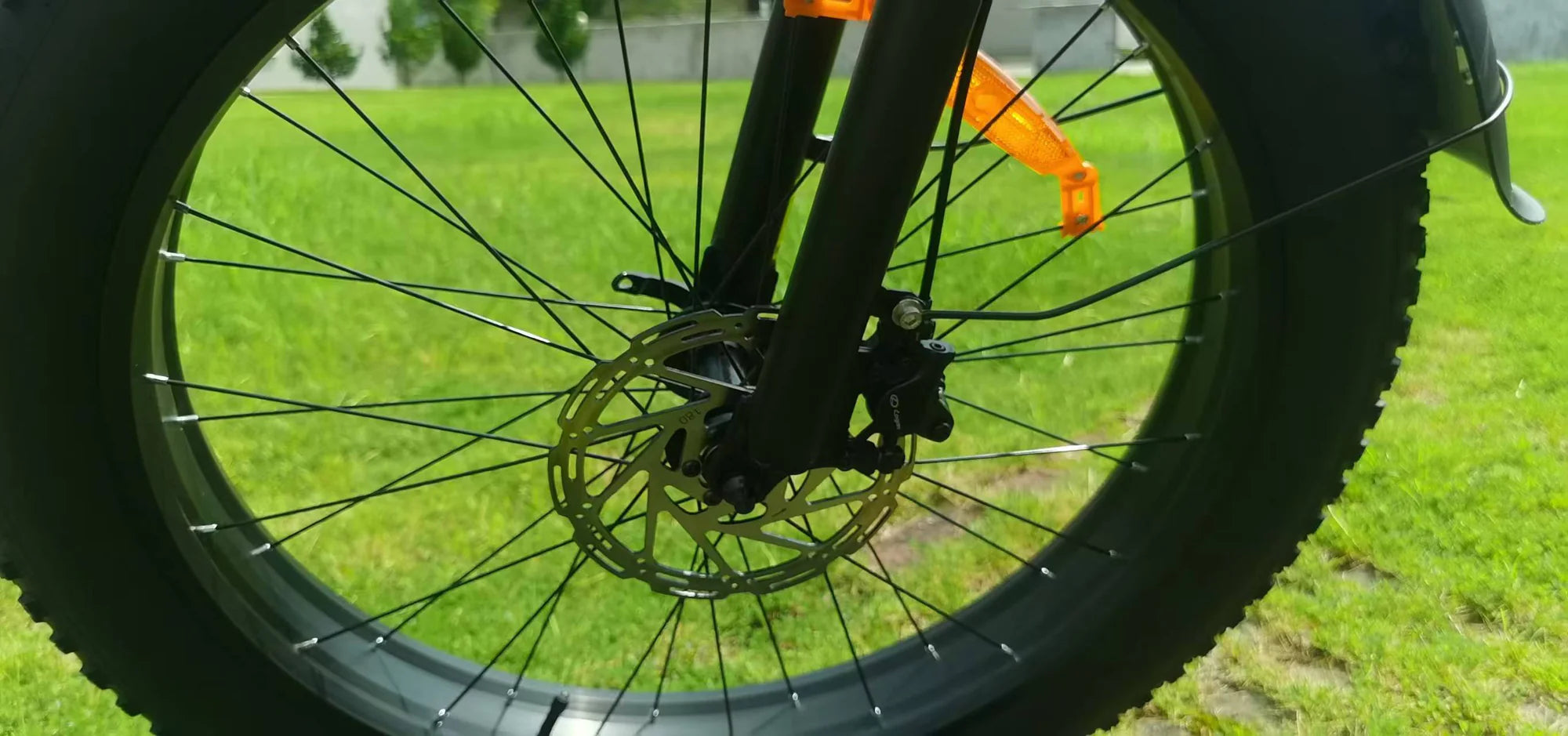

Front & Rear Hydraulic Brakes
Benefiting from rear hydraulic brakes, this bike delivers precise stopping power tailored for optimal rear wheel control. Meanwhile, the front hydraulic brakes ensure superior braking force, essential for swift and efficient stops.
26‘’x4" Fat Tire
Featuring 26'' * 4.0'' fat tires with rugged tread patterns, this bike offers exceptional grip, wear resistance, and anti-skid capabilities. Plus, multiple riding modes accommodate your individual preferences.
Other Details
Frame is crafted from durable high-ended aluminum 6061 alloys, ensuring longevity and robustness. The integrated intelligent LCD headlight display elevate the riding experience.
B1 Assembly Guide
Please take note that Bluvall and Zeegr share same product line,both assembly are same.This video suits for all Bluvall and Zeegr 26"x4" fat tire ebikes.
B1 pro arrived 90% assembled ,the rest is easy with this video
Specification
Weight & Size
Weight
- Net Weight:32kg (69lbs) ( including battery)
- Gross Weight:41.5kg (95.56lb)
- Battery Weight:4kg (8.82lb)
- Weight limit:150 kg (330 lb) Payload Capacity
Size
- Product Size:1930x730x1110mm
- Packing Size:1570x330x900mm
General
General
- Classes:Class 4(Ebikes can go above 28mph with pedal assistance)
- Max Speed: 31MPH
- Range:up to 60 Miles by Pedal assist,30+ Miles by Throttle(Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
- Pedal Assist:5 Levels
E-system
- Battery:Removable Internal Lithium-ion Battery, 48V 16Ah, 720Wh
- Charger:48V 3 Amp Charger, Approx. 6 Hour Charging, Aviation Connector. UL LISTED
- Motor:Rear Geared Hub Motor, Rated 1000w,Max Torque 80NM
- Controller: 48V 25A Peak
- Display: Multifunctional LCD Smart Display
- Pedal Assist: Cadence Sensor
- Throttle: Twist Throttle
- Front Light:48V 10W LED Light, 30 LUX
Component
Drivetrain
- Shifter:Shimano 7-Speed RevoShift
- Rear Derailleur:Shimano ARDTY500D 7-Speed, Long Cage
- Crank & Chainring: 52T, 170mm Alloy Crank
- Freewheel:Shimano 14-28T, 7-Speed freewheel
- Pedal: Alloy Platform Pedals
- Chain:KMC 124 Link, 7-Speed
Components
- Saddle: Comfortable Wide Saddle
- Seatpost:Forged Alloy, Ø30.4*350mm
- Seat Clamp:Ø35mm Quick Release
- Stem:Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 70mm, RISE: ±7°
- Handlebar:Aluminum Ø31.8mm, Width 740mm
- Headset:Sealed Bearing Headset
- Grips:Nylon Lock-on, Ergonomic Comfort
- Brake:Front & Rear Hydralic Disc Brakes, with160mm discs, with power-cut-off function
- Brake rotor: 160mm, 1.9mm thick
- Kickstand:Side Kickstand, Alloy, Rear Mount
- Fenders:Plastic 26"x110mm
- Rear Rack:Stainless Steel Rear Rack
Frameset
- Frame: 6061 Aluminium, Removable Battery, Internal Routing
- Fork:Hydraulic Suspension Fork with 60mm travel, with lockout
Wheels
- Rim Material:Aluminum
- Rim Size:26" 36H Front & Rear
- Front Wheel Spokes:13G x 244/246mm, Black Stainless
- Rear Wheel Spokes:12G x 217/219mm, Black Stainless
- Tubes:Butyl Rubber, Schrader Valve
- Hubs:Disc Nutted Front /Rear Axles
- Tire: Fat Tires
- Tire Size: 26" x 4.0"
Inside the Box
Ebike x1
Battery x1
Charger x1
peddle x2
Tool Set x1
Manual X1
Bell & Phone Holder x1
